Tractor Farm Cultivator

FOB Reference Price:Get Latest Price
$120.00 - $1,000.00 / Pieces | 15 Piece/Pieces (Min. Order)
Model Number:
BC-230
Lead Time:
Quantity(Pieces) 1 - 200 >200
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years
Power Type:
Gasoline
Condition:
New
Type:
Farm Cultivator
Certification:
ISO 9001:2000
Use:
Farm Machinery
Place of Origin:
Punjab, India
Brand Name:
Brohawk
After-sales Service Provided:
Online support
Color:
Red , Black , Green & Blue
Supply Ability
Supply Ability:
200 Piece/Pieces per Month As per requirement
Packaging & Delivery
Packaging Details
Steel pallet export worthy packing. As per buyer's specifications and export worthy
Port
Mumbai
Lead Time :
Quantity(Pieces) 1 - 200 >200
Est. Time(days) 60 To be negotiated

Product Description

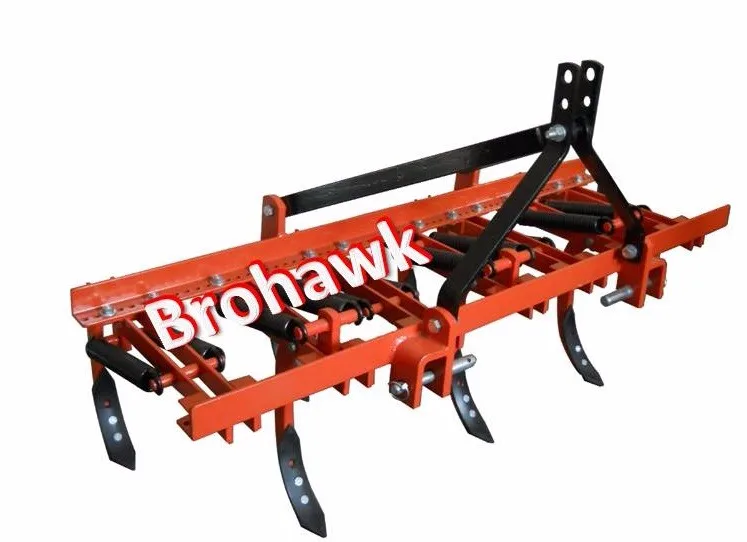

Farm Cultivator

  • Suitable for use in stone and root obstructed soil.
  • It is designed for toughest operations.
  • Used for loosening and aerating soil to a depth of nine inches.
  • Prepares seed beds quickly and economically.
  • When one tine strikes a hidden object, the other continue to work at the correct depth.
  • Spring loaded assemblies derive their strength from heavy-duty angles, which once fixed to the immensely strong main frame cannot move or strain out of position.


Specification of cultivator:

CODE

5 TINE

7 TINE

9 TINE

11 TINE

13 TINE

15 TINE

Frame (Channle)

75 x 40 mm

75 x 40 mm

75 x 40 mm

75 x 40 mm

75 x 40 mm Foldable

75 x 40 mm Foldable

Spring

10 mm WD, 50 mm OD  28.5 Coils

10 mm WD, 50 mm OD 28.5 Coils

10 mm WD,   50 mm OD 28.5 Coils

10 mm WD, 50 mm OD 28.5 Coils

10 mm WD,  50 mm OD  28.5 Coils

10 mm WD, 50 mm OD  28.5 Coils

Tine (forged)

50 x 25 mm

50 x 25 mm

50 x 25 mm

50 x 25 mm

50 x 25 mm

50 x 25 mm

Pairs (angle)

65x65x6 mm

65x65x6 mm

65x65x6 mm

65x65x6 mm

65x65x6 mm

65x65x6 mm

Anchor Pin

22 mm

22 mm

22 mm

22 mm

22 mm

22 mm

Nuts

High Tensile

High Tensile

High Tensile

High Tensile

High Tensile

High Tensile

Frame Bolt

M 12 x 35          (High Tensile)

M 12 x 35 (High Tensile)

M 12 x 35 (High Tensile)

M 12 x 35   (High Tensile)

M 12 x 35           (High Tensile)

M 12 x 35     (High Tensile)

Tine Boltm

18 x 65 mm(High Tensile)

18 x 65 mm (High Tensile)

18 x 65 mm     (High Tensile)

18 x 65 mm     (High Tensile)

18 x 65 mm                 (High Tensile)

18 x 65 mm  (High Tensile)

Linkage 3 Point

50 x 12 mm (rear) 50 x 12 (front)

50 x 12 mm(rear)    50 x 12 (front)

50 x 12 mm (rear) 50 x 12 (front)

50 x 12 mm (rear) 50 x 12 (front)

75 x 12 mm (front) 50 x 12 (rear)

75 x 12 mm (front) 50 x 12 (rear)

Shovel

8 mm En-45

8 mm En-45

8 mm En-45

8 mm En-45

8 mm En-45

8 mm En-45

Length

1110 mm

1560 mm

2000 mm

2457 mm

2914 mmm

3215 mm

Width

850 mm

850 mm

850 mm

850 mm

850 mm

850 mm

Height

585 mm

585 mm

585 mm

585 mm

585 mm

585 mm

Tiller Pin

25 mm

25 mm

25 mm

25 mm

25 mm

25 mm

Weight

190 kg

240 kg

280 kg

340 kg

450 kg

520 kg

CODE

5 TINE

7 TINE

9 TINE

11 TINE

13 TINE

15 TINE

Frame (Channle)

75 x 40 mm

75 x 40 mm

75 x 40 mm

75 x 40 mm

75 x 40 mm Foldable

75 x 40 mm Foldable

Spring

10 mm WD,   50 mm OD 28.5 Coils

10 mm WD, 50 mm OD 28.5 Coils

10 mm WD, 50 mm OD 28.5 Coils

10 mm WD,  50 mm OD 28.5 Coils

10 mm WD, 50 mm OD             28.5 Coils

10 mm WD, 50 mm OD 28.5 Coils

Tine (forged)

50 x 25 mm

50 x 25 mm

50 x 25 mm

50 x 25 mm

50 x 25 mm

50 x 25 mm

Pairs (angle)

65x65x6 mm

65x65x6 mm

65x65x6 mm

65x65x6 mm

65x65x6 mm

65x65x6 mm

Anchor Pin

22 mm

22 mm

22 mm

22 mm

22 mm

22 mm

Nuts

High Tensile

High Tensile

High Tensile

High Tensile

High Tensile

High Tensile

Frame Bolt

M 12 x 35     (High Tensile)

M 12 x 35 (High Tensile)

M 12 x 35     (High Tensile)

M 12 x 35         (High Tensile)

M 12 x 35           (High Tensile)

M 12 x 35         (High Tensile)

Tine Boltm

18 x 65 mm     (High Tensile)

18 x 65 mm     (High Tensile)

18 x 65 mm     (High Tensile)

18 x 65 mm     (High Tensile)

18 x 65 mm             (High Tensile)

18 x 65 mm       (High Tensile)

Linkage 3 Point

50 x 12 mm (rear) 50 x 12 (front)

50 x 12 mm(rear) 50 x 12 (front)

50 x 12 mm (rear) 50 x 12 (front)

50 x 12 mm (rear) 50 x 12 (front)

75 x 12 mm (front) 50 x 12 (rear)

75 x 12 mm (front) 50 x 12 (rear)

Shovel

8 mm En-45

8 mm En-45

8 mm En-45

8 mm En-45

8 mm En-45

8 mm En-45

Length

1110 mm

1560 mm

2000 mm

2457 mm

2914 mmm

3215 mm

Width

850 mm

850 mm

850 mm

850 mm

850 mm

850 mm

Height

585 mm

585 mm

585 mm

585 mm

585 mm

585 mm

Tiller Pin

25 mm

25 mm

25 mm

25 mm

25 mm

25 mm

Weight

190 kg

240 kg

280 kg

340 kg

450 kg

520 kg





Packaging & Shipping

Steel Pallets



Company Information

Brohawk manufacturer, exporter, supplier, producer of Agriculture equipment -Spring loaded cultivator. Brohawk field cultivators are suitable in stone and root obstructed soil to break up soil, rip weeds and stir soil to prepare seed beds. It is designed for toughest operations to prepare seeds beds quickly and economically. When one tine strikes a hidden object, the other continues to work at the correct depth. Spring loaded tines fixed to the immensely strong main frame cannot move or strain out of position. Our high quality cultivators range in size, number of shanks, and rigidity for different soil type.
